架构

组件

Core Longhorn Components

Longhorn Manager (longhorn-manager-*)

1
2
3
4
5
6


# Purpose: Main control plane component
- Manages the Longhorn storage system
- Coordinates volume operations (create, delete, attach, detach)
- Handles volume replication and scheduling
- Maintains volume health and status
- Runs on each node (DaemonSet)

Longhorn UI (longhorn-ui-*)

1
2
3
4
5


# Purpose: Web dashboard for management
- Provides web interface for Longhorn
- Visualize volumes, nodes, and backups
- Manage snapshots and backups
- Monitor system health

Longhorn CSI Plugin (longhorn-csi-plugin-*)

1
2
3
4
5


# Purpose: Container Storage Interface driver
- Integrates Longhorn with Kubernetes storage
- Handles volume provisioning and attachment
- Implements CSI specification
- Runs on each node (DaemonSet)

Engine Image (engine-image-ei-*)

1
2
3
4
5


# Purpose: Volume data engine
- Actual storage engine that manages data
- Handles I/O operations for volumes
- Implements replication and rebuilding
- Multiple versions for compatibility

Instance Manager (instance-manager-*)

1
2
3
4
5


# Purpose: Manages volume instances
- Controls engine and replica processes
- Handles volume instance lifecycle
- Two types: engine-manager and replica-manager
- One per node

CSI Driver Components

CSI Attacher (csi-attacher-*)

1
2
3
4


# Purpose: Attaches/detaches volumes to nodes
- Implements CSI `ControllerPublishVolume`
- Handles volume attachment requests
- Multiple replicas for high availability

CSI Provisioner (csi-provisioner-*)

1
2
3
4


# Purpose: Creates/deletes persistent volumes
- Implements CSI `CreateVolume`/`DeleteVolume`
- Dynamically provisions PVs from PVCs
- Manages storage class operations

CSI Resizer (csi-resizer-*)

1
2
3
4


# Purpose: Resizes volumes
- Implements CSI `ControllerExpandVolume`
- Allows online volume expansion
- Handles PVC resize requests

CSI Snapshotter (csi-snapshotter-*)

1
2
3
4


# Purpose: Manages volume snapshots
- Implements CSI volume snapshot functionality
- Creates/restores volume snapshots
- Integrates with Kubernetes VolumeSnapshot API

Supporting Components

Longhorn Driver Deployer (longhorn-driver-deployer-*)

1
2
3
4


# Purpose: Deploys CSI driver
- Installs and updates CSI driver components
- Manages CSI driver lifecycle
- Runs as a single deployment

NFS Client Provisioner (nfs-client-provisioner-*)

1
2
3
4
5


# Purpose: Enables RWX (ReadWriteMany) volumes
- Provides NFS sharing for Longhorn volumes
- Allows multiple pods to mount same volume simultaneously
- Essential for RWX access mode
# Note: This is for Longhorn volumes with `share: true`

Data Flow

数据流过程

Control Plane: Longhorn Manager (orchestration)
Data Plane: Engine Image + Instance Manager (I/O operations)
K8s Integration: CSI Plugin + CSI components
Management: Longhorn UI (monitoring/management)
Multi-Attach: NFS Provisioner (RWX volumes)

总结列表

Component	Purpose	Critical?	Replicas
Longhorn Manager	Storage orchestration	✅ Yes	1 per node
Longhorn UI	Web management interface	⚠️ Important	2
CSI Plugin	Kubernetes integration	✅ Yes	1 per node
Engine Image	Data engine	✅ Yes	Version-based
Instance Manager	Volume instance control	✅ Yes	1 per node
CSI Attacher	Volume attachment	✅ Yes	3
CSI Provisioner	Volume provisioning	✅ Yes	3
CSI Resizer	Volume expansion	⚠️ Important	3
CSI Snapshotter	Snapshots	⚠️ Important	3
Driver Deployer	CSI deployment	✅ Yes	1
NFS Provisioner	RWX volumes	✅ For RWX	1

实现细节

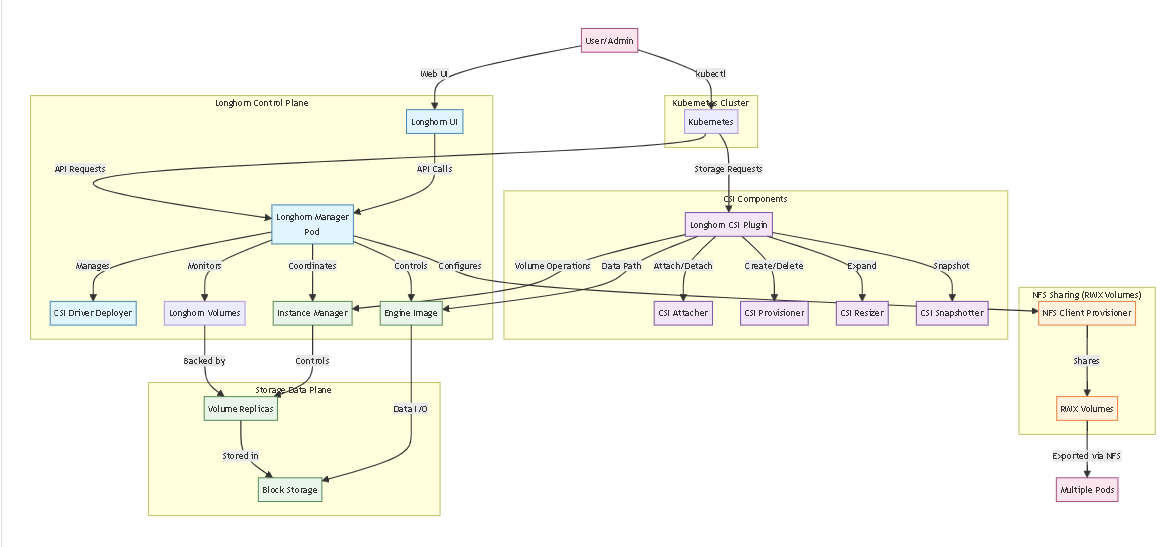

关系图

flowchart LR
    U["User / Admin"]

    subgraph CP["Longhorn Control Plane"]
        UI["Longhorn UI"]
        MGR["Longhorn Manager<br/>Pod"]
        DD["CSI Driver Deployer"]
        LV["Longhorn Volumes"]
    end

    subgraph K8S["Kubernetes Cluster"]
        K["Kubernetes"]
    end

    subgraph CSI["CSI Components"]
        LP["Longhorn CSI Plugin"]
        ATT["CSI Attacher"]
        PROV["CSI Provisioner"]
        RES["CSI Resizer"]
        SNAP["CSI Snapshotter"]
    end

    subgraph SDP["Storage Data Plane"]
        IM["Instance Manager"]
        EI["Engine Image"]
        VR["Volume Replicas"]
        BS["Block Storage"]
    end

    subgraph NFS["NFS Sharing (RWX Volumes)"]
        NFSP["NFS Client Provisioner"]
        RWX["RWX Volumes"]
        PODS["Multiple Pods"]
    end

    U -->|Web UI| UI
    U -->|kubectl| K
    UI -->|API Calls| MGR
    K -->|API Requests| MGR
    K -->|Storage Requests| LP

    MGR -->|Manages| DD
    MGR -->|Monitors| LV
    MGR -->|Coordinates| IM
    MGR -->|Controls| EI
    MGR -->|Configures| LP

    LP -->|Attach / Detach| ATT
    LP -->|Create / Delete| PROV
    LP -->|Expand| RES
    LP -->|Snapshot| SNAP
    LP -->|Volume Operations| IM
    LP -->|Data Path| EI
    LP -->|RWX / NFS| NFSP

    LV -->|Backed by| VR
    IM -->|Controls| VR
    EI -->|Data I/O| BS
    VR -->|Stored in| BS

    NFSP -->|Shares| RWX
    RWX -->|Mounted by| PODS

    classDef user fill:#fce7f3,stroke:#db2777,color:#111827;
    classDef control fill:#dbeafe,stroke:#2563eb,color:#111827;
    classDef k8s fill:#fef3c7,stroke:#d97706,color:#111827;
    classDef csi fill:#f3e8ff,stroke:#9333ea,color:#111827;
    classDef storage fill:#dcfce7,stroke:#16a34a,color:#111827;
    classDef nfs fill:#ffedd5,stroke:#f97316,color:#111827;

    class U user;
    class UI,MGR,DD,LV control;
    class K k8s;
    class LP,ATT,PROV,RES,SNAP csi;
    class IM,EI,VR,BS storage;
    class NFSP,RWX,PODS nfs;

Control Plane (Blue)

Longhorn Manager: Brain of the system - manages all operations
Longhorn UI: Web dashboard for visualization and management
CSI Driver Deployer: Deploys and updates CSI components

CSI Integration (Purple)

CSI Attacher: Handles volume attachment to nodes
CSI Provisioner: Creates/deletes PersistentVolumes
CSI Resizer: Expands volumes on-demand
CSI Snapshotter: Manages volume snapshots
Longhorn CSI Plugin: Main integration point with Kubernetes

Storage Data Plane (Green)

Instance Manager: Manages volume lifecycle on each node
Engine Image: Handles actual data I/O operations
Volume Replicas: Data copies distributed across nodes
Block Storage: Underlying storage devices

NFS Sharing (Orange)

NFS Client Provisioner: Enables ReadWriteMany (RWX) access
Shared Volumes: Volumes accessible by multiple pods simultaneously

Data Flow

User/Admin interacts via UI or kubectl
Longhorn Manager coordinates all operations
CSI components integrate with Kubernetes storage
Instance Managers and Engine Images handle data operations
NFS Provisioner enables multi-pod access for RWX volumes

写数据的过程：

flowchart TD
    App[Application Pod] -->|Writes data| PVC[PersistentVolumeClaim]
    PVC -->|Storage request| LonghornVol[Longhorn Volume]

    subgraph "Longhorn Data Plane (Green Components)"
        LonghornVol -->|I/O routing| Engine[Engine Image Pod]
        Engine -->|Data distribution| Replica1[Replica 1]
        Engine -->|Data distribution| Replica2[Replica 2]
        Engine -->|Data distribution| Replica3[Replica 3]

        Replica1 -->|Writes to| Storage1[/var/lib/longhorn/]
        Replica2 -->|Writes to| Storage2[/var/lib/longhorn/]
        Replica3 -->|Writes to| Storage3[/var/lib/longhorn/]
    end

    Storage1 -->|Physical disk| Disk1[Node 1 Disk]
    Storage2 -->|Physical disk| Disk2[Node 2 Disk]
    Storage3 -->|Physical disk| Disk3[Node 3 Disk]

数据默认存储在：

每台机器的 /var/lib/longhorn

交互过程：

sequenceDiagram
    participant User as User/App
    participant K8s as Kubernetes API
    participant CSI as CSI Driver
    participant LH_M as Longhorn Manager
    participant LH_E as Engine Image
    participant LH_R as Replicas

    User->>K8s: kubectl create -f pvc.yaml
    K8s->>CSI: ProvisionVolume request
    CSI->>LH_M: Create Longhorn Volume
    LH_M->>LH_E: Deploy Engine Instance
    LH_E->>LH_R: Create Replicas (3x)
    LH_R->>LH_E: Replica ready status
    LH_E->>LH_M: Volume ready
    LH_M->>CSI: Volume created success
    CSI->>K8s: PV created and bound
    K8s->>User: PVC Bound status

写入

1
2


# Longhorn Architecture (Distributed)
Longhorn Manager (Orchestration) + Longhorn Engine (Per-Volume) + Instance Manager (Per-Node)

其他操作

快照和读写流程

快照

最新的数据从 live data读取
但是live data 的某个历史点可能被覆盖了
内存中保持了快照的index，根据 index 可以找到最近的历史快照

Step-by-Step Location Resolution:

Pod requests I/O → Kubernetes routes to Longhorn CSI driver
CSI driver queries Longhorn Manager for volume location
Longhorn Manager checks Kubernetes for the volume’s Engine pod
Engine pod contains the complete replica map and read index
Engine directs I/O to the appropriate replicas

Complete Flow: CSI Driver → Longhorn Manager → Engine

sequenceDiagram
    participant CSI as CSI Driver
    participant KM as Kubernetes API
    participant LM as Longhorn Manager
    participant EP as Engine Pod
    participant CR as Custom Resources

    CSI->>LM: HTTP API call to longhorn-backend:9500
    LM->>KM: Query Volume CRD
    KM->>LM: Return volume spec/status
    LM->>KM: Query Engine Pod location
    KM->>LM: Return Engine Pod details
    LM->>CSI: Return volume location (Engine Pod info)
    CSI->>EP: Direct I/O requests to Engine Pod

Scaling Summary

Component	Scaling Type	Pod Count Formula	Fixed or Dynamic
Longhorn Manager	DaemonSet	`number_of_nodes`	✅ Fixed
Instance Manager	DaemonSet	`number_of_nodes`	✅ Fixed
Longhorn Engine	Per-Volume	`number_of_active_volumes`	🔄 Dynamic

pvc 绑定的过程

sequenceDiagram
    participant User as User/Admin
    participant K8s as Kubernetes API
    participant CSI as CSI Driver
    participant LM as Longhorn Manager
    participant IM as Instance Manager
    participant Engine as Longhorn Engine

    User->>K8s: kubectl create -f pvc.yaml
    K8s->>CSI: PVC Creation Request
    CSI->>LM: API Call to Longhorn Manager
    LM->>K8s: Create Volume CRD
    LM->>IM: Deploy Engine & Replicas
    IM->>Engine: Create Engine Instance
    IM->>IM: Create Replica Instances
    Engine->>CSI: Volume Ready Notification
    CSI->>K8s: PV Created & Bound
    K8s->>User: PVC Bound

备份

The Relationship between Backups in Secondary Storage and Snapshots in Primary Storage

Backup Creation Process**

graph LR
    A[Live Volume] --> B[Snapshot] --> C[Backup] --> D[Backupstore]

    subgraph "Cluster"
        A --> E[Snapshot Chain]
        E --> B
    end

    subgraph "External Storage"
        D --> F[S3/NFS]
    end

可以cron 定时触发
可以增量写外部存储

物理和逻辑关系

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


Logical View (K8s/User)      Physical View (Node Filesystem)
┌─────────────────────┐      ┌─────────────────────────────────────┐
│ PVC: my-app-data    │      │ /var/lib/longhorn/replicas/         │
│                     │      │   pvc-8b23a1cd...-073f7fd3/         │
│ Longhorn Volume:    │◄────►│   ├── volume.meta                   │
│  - Size: 1GB        │      │   ├── volume-head-002.img (live)    │
│  - State: attached  │      │   ├── volume-snap-xxx.img (snapshot)│
│  - Node: node2      │      │   └── *.meta files                 │
│  - Health: healthy  │      └─────────────────────────────────────┘
└─────────────────────┘

volumes.longhorn.io 这个 CR 信息：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


kubectl get volumes.longhorn.io -n longhorn-system
NAME                                       DATA ENGINE   STATE      ROBUSTNESS   SCHEDULED   SIZE          NODE    AGE
pvc-31c91a1a-b871-4355-8bb6-1daf0e47a3f2   v1            attached   healthy                  6442450944    node2   40h
pvc-351abcd9-5a4e-4056-adbe-39594cb50b98   v1            detached   unknown                  6442450944            40h
pvc-49f1dda7-34cb-409e-93ed-3dc521659441   v1            attached   healthy                  1073741824    node1   2d23h
pvc-4fb09e73-b790-4350-88e6-f2aa1a3f256d   v1            detached   unknown                  1073741824            40h
pvc-5117dd9b-0dee-4f72-a2e7-38808c499608   v1            attached   healthy                  1073741824    node1   40h
pvc-78aeef5f-6680-44c4-b199-63b92b7fdafe   v1            detached   unknown                  21474836480           5d20h
pvc-8089565a-eb28-42d0-9acf-d827886fe546   v1            detached   unknown                  1073741824            40h
pvc-88f9aa51-5b17-4eff-8c91-b1d56087b78d   v1            attached   healthy                  1073741824    node2   40h
pvc-8b23a1cd-f716-4c51-9ae8-e3dee66e9652   v1            attached   healthy                  1073741824    node2   2d23h
pvc-a24a9aa5-b9b3-4861-a5ca-cd767e2edd4c   v1            detached   unknown                  21474836480           5d20h
pvc-c0371cd3-a6c3-471c-bda5-67fbdba3c9c7   v1            detached   unknown                  1073741824            40h
pvc-d036fa3c-7deb-4d4f-b328-e4108ce4c2ab   v1            attached   healthy                  1073741824    node1   2d23h
pvc-d137d078-59b7-4da3-b003-77ef95309d1c   v1            attached   healthy                  6442450944    node1   40h

longhorn 相关的所有 crd

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


kubectl get crd | grep longhorn
backingimagedatasources.longhorn.io                           2025-12-18T02:27:33Z
backingimagemanagers.longhorn.io                              2025-12-18T02:27:33Z
backingimages.longhorn.io                                     2025-12-18T02:27:33Z
backupbackingimages.longhorn.io                               2025-12-18T02:27:33Z
backups.longhorn.io                                           2025-12-18T02:27:33Z
backuptargets.longhorn.io                                     2025-12-18T02:27:33Z
backupvolumes.longhorn.io                                     2025-12-18T02:27:34Z
engineimages.longhorn.io                                      2025-12-18T02:27:34Z
engines.longhorn.io                                           2025-12-18T02:27:34Z
instancemanagers.longhorn.io                                  2025-12-18T02:27:34Z
nodes.longhorn.io                                             2025-12-18T02:27:34Z
orphans.longhorn.io                                           2025-12-18T02:27:34Z
recurringjobs.longhorn.io                                     2025-12-18T02:27:34Z
replicas.longhorn.io                                          2025-12-18T02:27:34Z
settings.longhorn.io                                          2025-12-18T02:27:34Z
sharemanagers.longhorn.io                                     2025-12-18T02:27:34Z
snapshots.longhorn.io                                         2025-12-18T02:27:34Z
supportbundles.longhorn.io                                    2025-12-18T02:27:34Z
systembackups.longhorn.io                                     2025-12-18T02:27:34Z
systemrestores.longhorn.io                                    2025-12-18T02:27:34Z
volumeattachments.longhorn.io                                 2025-12-18T02:27:34Z
volumes.longhorn.io                                           2025-12-18T02:27:35Z

How PV, PVC, and StorageClass Work Together

graph LR
    A[User creates PVC] --> B[StorageClass]
    B --> C[CSI Driver]
    C --> D[Storage Provider<br/>Longhorn/NFS/EBS]
    D --> E[PV Created]
    E --> F[PVC Bound]
    F --> G[Pod uses Volume]

Advanced Longhorn Features

Incremental Snapshots with Chain Management

Advanced Benefit: Space-efficient snapshots that only store block differences, enabling point-in-time recovery without massive storage overhead.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


# Example: Automated snapshot chain with retention policy
apiVersion: longhorn.io/v1beta2
kind: Volume
metadata:
  name: mysql-data
spec:
  numberOfReplicas: 3
  snapshotPolicy:
    # Automated snapshots every 6 hours, keep 5 latest
    snapshotInterval: 6h
    snapshotRetention: 5
  # Incremental snapshots - only store changed blocks
  dataLocality: best-effort

Cross-Cluster Disaster Recovery

Use Case: Primary cluster in AWS us-east-1 fails → Restore volumes in us-west-2 from S3 backups within minutes.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


# Setup backup to S3 with cross-cluster restore capability
apiVersion: longhorn.io/v1beta2
kind: Backup
metadata:
  name: dr-backup-policy
spec:
  syncInterval: 1h
  backupTarget:
    type: s3
    endpoint: s3.amazonaws.com
    bucket: longhorn-backups
    region: us-west-2
  # Enable encryption for off-site backups
  encryption: true

Quality of Service (QoS) Controls

Enterprise Feature: Ensure predictable performance for production databases while allowing burst capacity for less critical workloads.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


# Apply performance limits to prevent noisy neighbors
apiVersion: longhorn.io/v1beta2
kind: Setting
metadata:
  name: volume-qos
spec:
  # IOPS limits per volume
  iopsLimit: 1000
  # Throughput limits
  throughputLimit: 100Mi
  # Reserve resources for critical workloads
  guaranteedIops: 500

Volume Cloning and Templating

DevOps Benefit: Create 100+ development environments from production snapshots in seconds, each consuming storage incrementally.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


# Create instant clones for development/testing
apiVersion: longhorn.io/v1beta2
kind: Volume
metadata:
  name: prod-db-clone
spec:
  fromBackup:
    backup: s3://longhorn-backups/prod-db-latest
  # Clone without consuming full storage immediately
  thinProvision: true
  # Customize clone parameters
  replicaAutoBalance: best-effort

Advanced Replication Strategies

HA Pattern: Survives entire availability zone failures while maintaining data locality optimizations.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


# Multi-zone replication for high availability
apiVersion: longhorn.io/v1beta2
kind: Volume
metadata:
  name: cross-az-volume
spec:
  numberOfReplicas: 3
  replicaAutoBalance: true
  # Spread replicas across failure domains
  nodeSelector:
    - key: topology.kubernetes.io/zone
      operator: In
      values: [us-east-1a, us-east-1b, us-east-1c]
  dataLocality: strict-local

CSI Snapshots Integration with Kubernetes

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25


# Native Kubernetes snapshot API integration
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: app-daily-snapshot
spec:
  volumeSnapshotClassName: longhorn-snapshot-class
  source:
    persistentVolumeClaimName: app-data-pvc
---
# Schedule with Kubernetes CronJob
apiVersion: batch/v1
kind: CronJob
metadata:
  name: snapshot-job
spec:
  schedule: "0 2 * * *"  # Daily at 2 AM
  jobTemplate:
    spec:
      template:
        spec:
          containers:
          - name: snapshotter
            image: longhornio/longhorn-manager:v1.10.1
            command: ["lhctl", "snapshot", "create", "app-data"]

Performance Monitoring and Analytics

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18


# Advanced metrics collection
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: longhorn-metrics
  labels:
    app: longhorn
spec:
  selector:
    matchLabels:
      app: longhorn-manager
  endpoints:
  - port: manager
    path: /metrics
    interval: 30s
    # Custom metrics for performance analysis
    params:
      metrics: [iops, latency, throughput, replica_health]

Encryption at Rest with Key Rotation

Security: Enterprise-grade encryption with compliance-friendly key rotation policies.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


# Volume encryption with automatic key management
apiVersion: longhorn.io/v1beta2
kind: Volume
metadata:
  name: encrypted-volume
spec:
  encryption: true
  # Integration with external KMS
  kmsProvider:
    name: vault
    endpoint: https://vault.example.com:8200
    keyName: longhorn-encryption-key
  # Automatic key rotation every 90 days
  keyRotation: 90d

组件

Core Longhorn Components

CSI Driver Components

Supporting Components

Data Flow

总结列表

实现细节

其他操作

快照和读写流程

备份

物理和逻辑关系

Advanced Longhorn Features

参考

最近文章

分类

归档

标签

RSS
